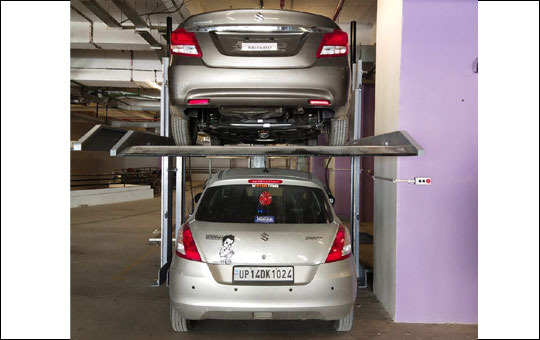

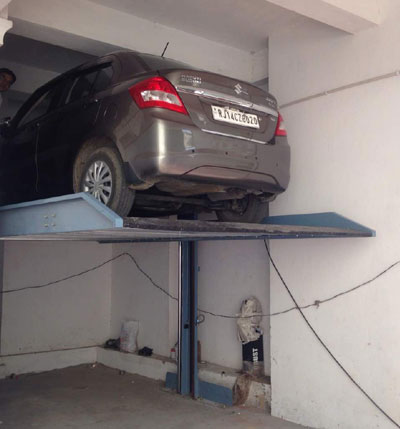

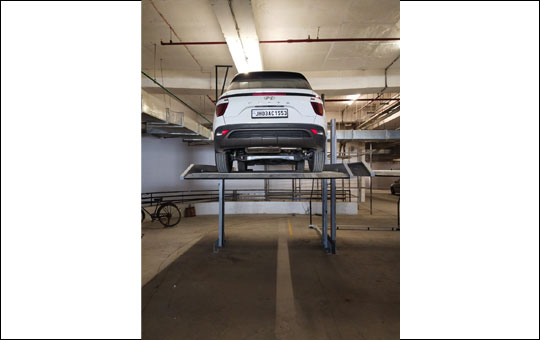

Stack Parking

Structural Steel -ISMC- 200 used for sturdy structure of main producers.
Galvanized Platforms - long life, rust free, corrosion free & easy to clean.
Minimum electric consumption - operational cost minimal as the downward movement does requir electrical power of 0.1Amp.
Low A.M.C cost as hydraulic system is time proven system with low maintenance cost.
Proximity Sensors avoid and rule out any accident at site by isolating the system for any type of movement till the floor is clear
Safety locks give an additional safety feature for avoiding fall of plat form is case of any hydraulic Failure.
24X7 consumer complaint center with on time complaint registration facility
Easy operation:-this is a very simple but highly technical systems needs a basic training to the operator
Front operating penal:- exclusively designed to ease the operation with installation in front for easy access.
Hazard Free Side Wall Ends - This an exclusive feature of our system which is ethically designed to avoid tyre cuts during turning in and turning out of vehicles.

DESCRIPTION	STACKER PARKING ( DEPENDENT TYPE)
	SEDAN & SMALL SIZE CARS	SUV’s
PLATFORM LENGTH(mm)	4000-4250	4250-4500
PLATFORM WIDTH(mm)	2000-2300	2300-2500
LIFTING CAPACITY PER PLATFORM(kg)	2000	2500
LIFTING CLERANCE	1750-1850	1900-2000
LIFTING TRAVAL TIME	19-21 SEC	22-25 SEC
LIFTING OPERATION	HYDRAULICALLY/ELECTRO
MOTOR ON POWER PACK	2.2 K.W./ 3 HP
OPERATING PENAL	MANUAL

The above specifications are indicative and subject to change depending on site conditions and availability of suitable dimensions. Drawings approved by both the Supplier & the Purchaser/Authorized person would only be deemed final and applicable for production.
