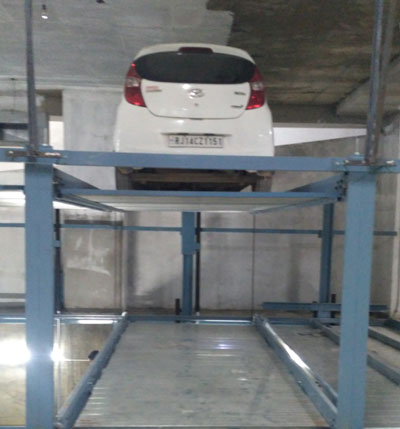

Puzzle Parking

Structural Steel -ISMC- 150 used for sturdy structure or main producers.
Galvanized Platforms - long life, rust free, corrosion free & easy to clean.
Minimum electric consumption - operational cost minimal as the downward movement does not required electrical power.
Low A.M.C cost as hydraulic system is time proven system with low maintenance cost.
Limit switch avoid and rule out any accident at site by isolating the system for any type of movement till the floor is clear
Safety locks give an additional safety feature for avoiding fall of plat form is case of any hydraulic Failure.
24X7 consumer complaint center with on time complaint registration facility.
Easy operation:-this is a very simple but a highly technical system needs a basic training to the operator.
Operating:-PLC controlled Lift easy to operate.

DESCRIPTION	PUZZLE PARKING PIT TYPE ( INDEPENDENT TYPE)
	SEDAN & SMALL SIZE CARS	SUV’s
PLATFORM LENGTH(mm)	4800-5000	5200-5500
PLATFORM WIDTH(mm)	2100-2300	2300-2500
LIFTING CAPACITY PER PLATFORM(kg)	2000	2500
LIFTING CLERANCE	1750-1850	1900-2000
TRAVAL SPEED LIFTING	19-21 SEC	22-25 SEC
SLIDING WITH G MOTOER	15 SEC/CAR	15 SEC/ CAR
OPERATION	HYDRAULICALLY AND ELECTRO MECHANICAL
MOTOR ON POWER PACK	2.2 K.W./ 3 HP
SLIDING G. MOTOR	.25KW
OERATING PENAL (with plc control)	AUTO AND MANUAL

The above specifications are indicative and subject to change depending on site conditions and availability of suitable dimensions. Drawings approved by both the Supplier & the Purchaser/Authorized person would only be deemed final and applicable for production.
